TGD-100 Ultrasonic Thickness Gauge

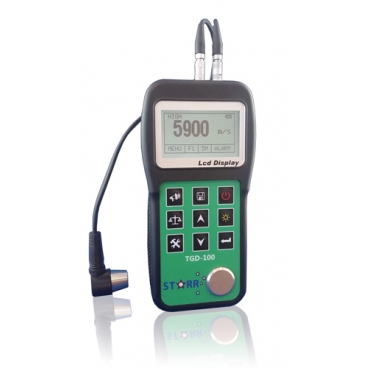

The TGD-100 Ultrasonic Thickness Gauge is used for measuring the thickness of various materials including metals, glass, plastics and more. This Thickness Gauge comes standard with many features including data storage and output with software and also includes a protective rubber holster for dust ingress and impact resistance.

** SPECIAL OFFER **

Combine with a 4 Step Wedge block and save $50

Availability: In stock, Ships within 1 business day

Options (select) :

$ 695.00 + GST

Add to cart

More info

TGD-100 Ultrasonic thickness gauge from Starr Instruments is an excellent general use tester for non-destructive thickness measurement, with added features to ensure great value.

The TDG-100 measures the thickness of solid composition materials using the pulse echo method. Such materials include;

Metals

Glass

Plastic

Rubber (most types)

and more.

The thickness is determined by using the sound velocity of a material. Conversely using a known thickness you can determine the sound velocity of a material.

The gauge features self calibration with the integrated 4mm calibration block located on the front of the unit.

A step Wedge block is also available for purchase separately for additional reference testing and lab certification.

FEATURES:

Large, clear LCD with switchable backlight
Internal Memory of 500 Readings
Export data to PC via USB with software (included)
2-point calibration for greater accuracy
Alarm limit setting for min. / max. values
Automatic probe recognition with all LEMO 00 connections
Adjustable sensitivity (gain) for high attenuating materials
5 user preset sound velocities for quick reference
Silicone rubber holster for dust and impact protection

SPECIFICATIONS:

Measurement Range	0.75mm to 300.00mm (material / probe dependant)
Display Units	Metric (mm) / Imperial (inch) Selectable
Sound Velocity Range	1000m/s - 9999 m/s
Display user preset sound velocities for quick reference and morResolution	0.01mm (<100mm) 0.1mm (>99.9mm)
Accuracy	±(0.5% Thickness + 0.04)mm (material dependant)
Internal Memory	500 Values & 5 Sound Velocities
Power	2 x AA batteries
Connection	LEMO 00
Data	USB
Dimensions	150mm x 74mm x 32mm
Weight	238gm

STANDARD CONTENTS:

1 x Thickness Gauge
1 x 5MHz Transducer Probe
1 x Silicone Rubber Holster
2 x AA Batteries
1 x Ultrasonic Couplant Gel (100mL)
1 x Software CD-ROM
1 x Data Cable
1 x User Instruction Manual

For any further assistance please contact us.

PROBE OPTIONS:

Standard Probe

The 5MHz 10mm right angle probe is the standard supplied probe transducer and this is recommended for most applications. If you have a non standard application the purchase of an additional probe can provide a solution.

Mini Probe

If requiring to measure curved surfaces with a diameter of at least 15mm the mini probe will assist. The smaller surface area of the probe allows for better coupling with the curved material being measured. This probe is also suitable for measuring thinner materials.

2MHz

The 2MHz probe is best suited for applications requiring high penetration. With a lower frequency and longer wavelength it is used to get readings on thicker samples and high attenuating material such as HDPE etc.

High Temperature

The high temperature probe consists a standard 5MHz transducer wrapped in a thick teflon grip designed for safe, comfortable use whilst testing materials up to a temperature of to 300°C such as boilers and process pipework.
