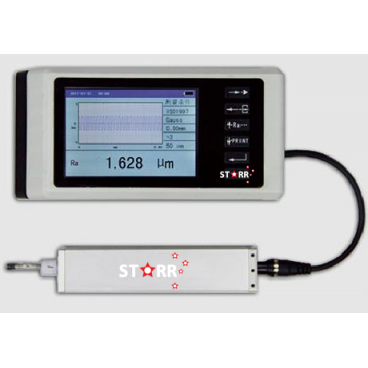

RTD-300 is an advanced model surface roughness gauge with a separate stylus and motor drive unit for greater access into tight spaces allowing the gauge to be used where other gauges are unable to test. This unit has comprehensive advanced data capabilities and can display the waveform graph on the LCD screen. This can be saved into memory for further analysis.
The Starr Instruments RTD-300 advanced surface roughness gauge is designed to allow testing of more difficult to access work pieces and has superior data capabilities to be a comprehensive testing device.
The feature of the separate stylus housing allows for measuring the roughness of inside or outside of bores on small diameter pipe or tube, stepped gears, o-ring grooves and recessed notches. Examples of use include measuring roughness of cylinder heads or brake discs in Automotive or Rail Tracks after refurbishment and maintenance.
RTD-300 works by using a diamond tipped stylus that accurately traces the profile of the material surface by measuring the vertical deviations from a uniform centre line. It is able to display the results under many parameters including Ra, Rz, Rq, Rp, Rv, Rsk, Rmr to name a few. The results are displayed on the high resolution, large, colour LCD that also shows the waveform trace of the surface. Results can be saved to internal memory and managed with the optional software.
FEATURES:
| Maximum Travel | 17.5mm |
| Indicating Error | ±10% |
| Accuracy | ±6% |
| Measured Profile | Roughness, Waviness, Contour |
| Parameter | Ra (0.005µm-16µm) Rz (0.02µm-160µm) |
| Paramater | Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsu, Rsm,Rmr, Rx |
| Filter | RC, PC-RC, Gauss, ISO13565 |
| Sampling Length "L" | 0.25mm, 0.8mm, 2.5mm, 8mm |
| Evaluation Length | (1-5)L |
| Interface | USB |
| Power | Built in rechargeable battery |
| Detection Principle | Current induction |
| Stylus Force | 4mN (0.4gf) |
| Stylus Angle | 90° |
| Calibration Template | included |
